NIAGARA 6-72 3/16" x 72" Plate Roll

Have one to sell?
616-433-6200
sales@hollandequipment.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Fabricating Machinery, Plate Roll
Manufacturer:
NIAGARA
Model:
6-72
Stock #:
802923
Status:
For Sale
Serial #:
60066

Description

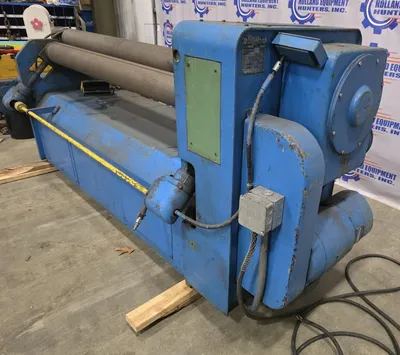

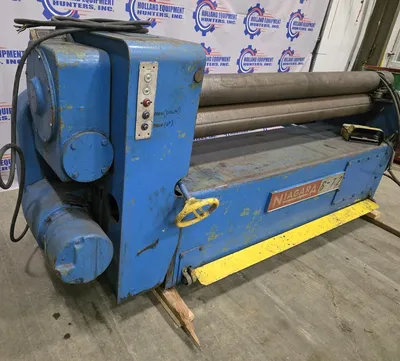

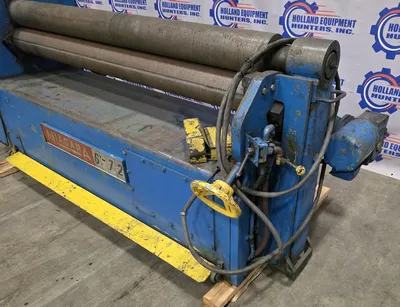

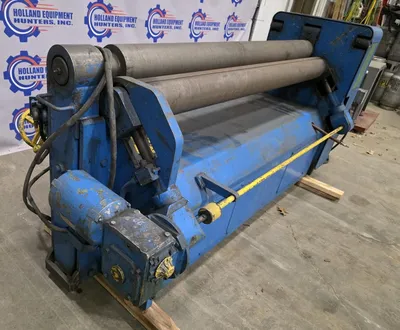

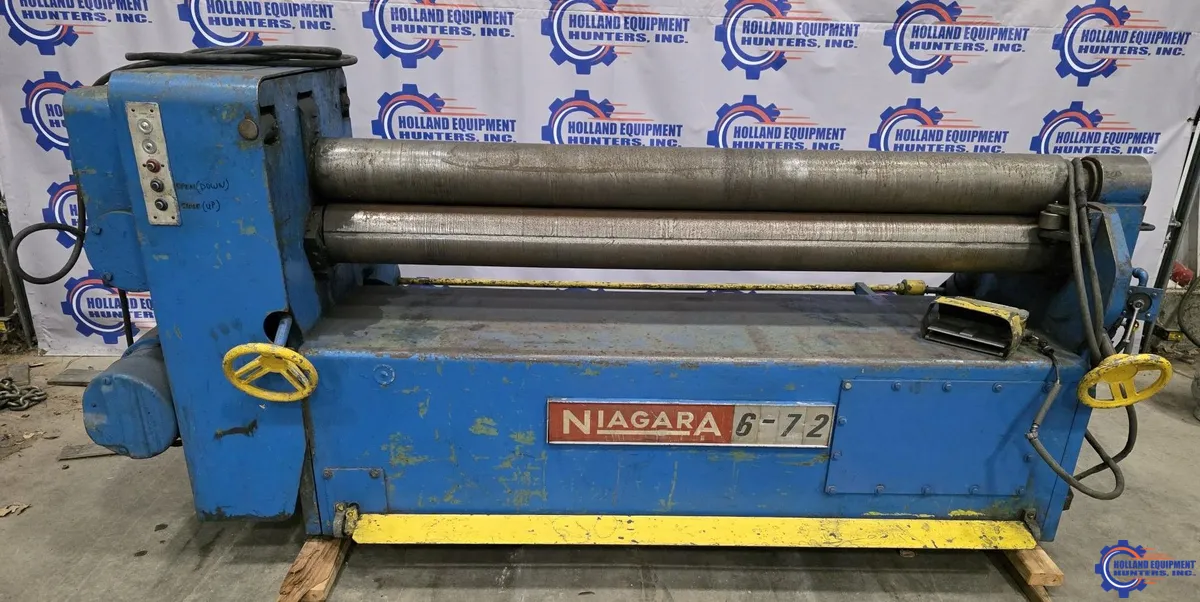

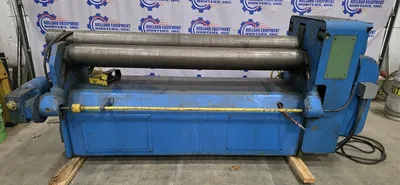

NIAGARA 6-72 Plate Roll with 6' length, 3/16" max thickness, and 3-roll mechanical setup. Includes air drop end and power rear roll adjustment. Roll diameter: 6".

EQUIPPED WITH: Air drop end with control
Power rear roll adjustment with control &
position indicators

Length of Rolls6'1.8 m
(Init/Dbl Pinch or Pyramid)INIT PINCHINIT PINCH
Max Thickness0.1875"4.7625 mm
Max Thickness (gauge)7 gauge7 gauge
# Rolls33
Hyd/MechMechMech
Power Rear Roll (Yes/No)NONO
Power7.5 hp5.6 kW
Roll Diameter6"152.4 mm
Weight4500 Lbs4500 Lbs

Bending capacity: 6' x 3/16" mild steel
Roll diameter: 6"
Roll length: 74"
Speeds approx.: 25 FPM
Pass line: 26"

Specifications are approximate and to best knowledge.
