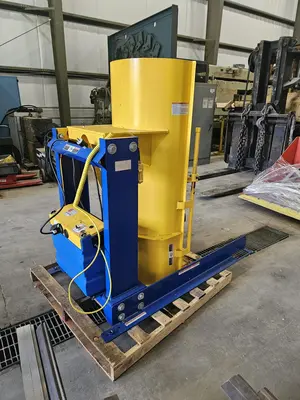

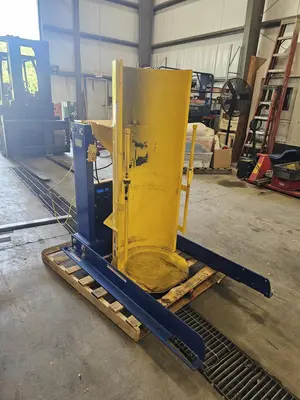

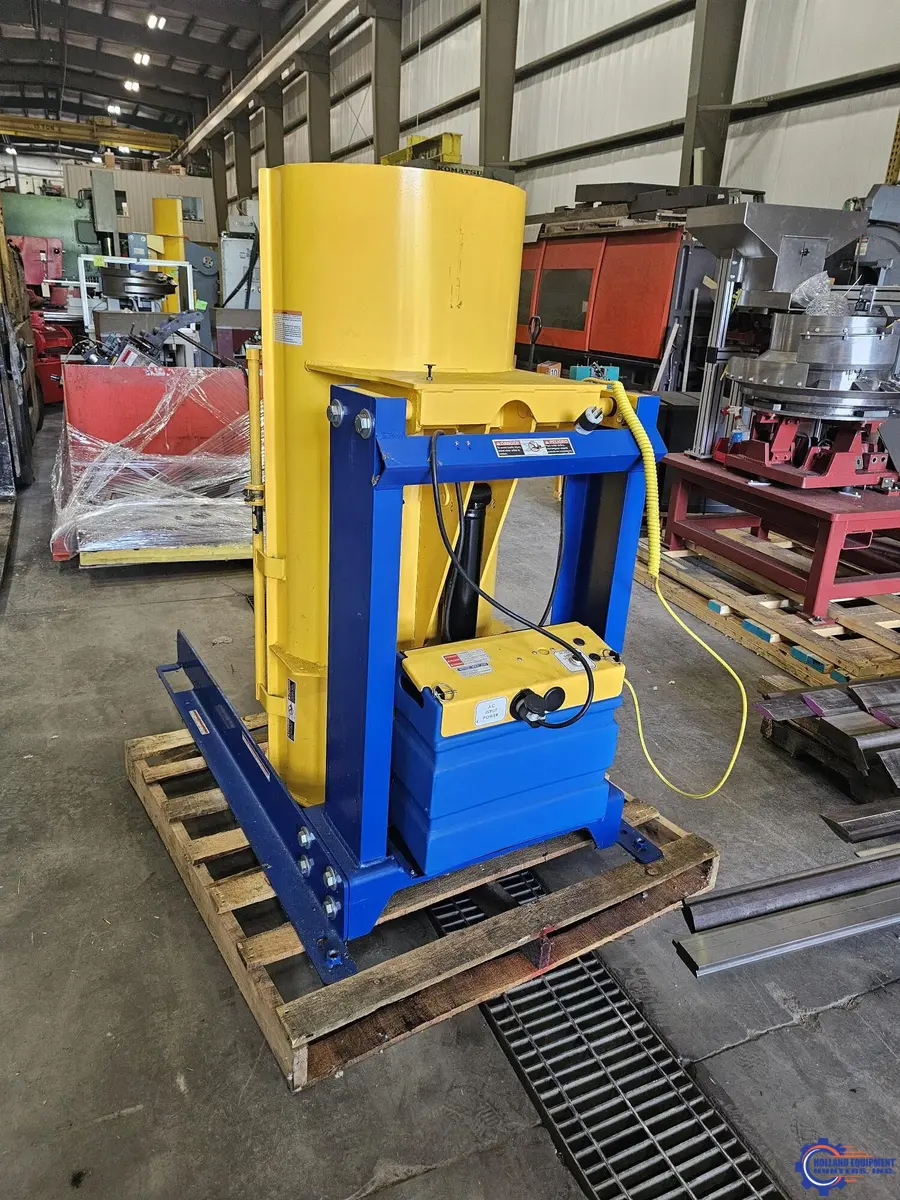

Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. All steel construction. Standard features include: 56 frame, ¾ HP motor, 120V single phase, 60Hz with an 8 foot long power cord and plug. Upper travel limit switch, emergency brass safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Chute is rotated with a hand held control on an 8 ft. long coil cord standard.
Dimensions
Dia. 24 in
Overall Height 60 in
Dispensing Height 36 in
Overall Width 36 in
Overall Length 61 1/2 in
Rotated Height 95 3/4 in
Level Height 60 in
Overall Depth 62 in
Dump Height 36 in
For Maximum Drum Diameter 24 in
Rotation Height 96 in
