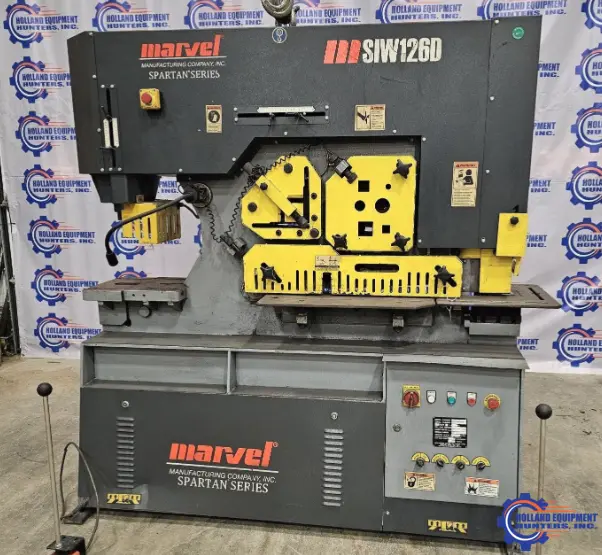

Adjustable Back Gauge, Adjustable Stroke Depth at Punch, ( 2 ) Full Control Foot Pedals
PUNCHING
Punch Pressure: 126 tons.
Quick Change Punch Holder and Jog Mode
Punch Work Table: Includes back gauge and adjustable stops.
Adjustable See-Through Punch Stripper: For fast and easy setup.
Die Holder: Adjustable in machined T-slots for quick punch and die alignment.
Standard Tooling: 1-1/2” in 1” material.
CPD Series: 26 punch, 62 die.
Large Tooling: 2” in 3/4″
CPD Series: SP51P punch, SP80D die.
Optional Oversize Tooling: 4-5/16” in 5/16” material.
Throat Depth: 14” (D); 24” (DX).
Stroke Length: 3-1/8”
Cycles per Minute in 3/4”: 25.
Punching Station Work Height: 43-3/4”.
FLAT BAR SHEARING
Flat Bar Shear Capacity: 14” in 1”.
Maximum Width x Thickness: 24” in 9/16”.
Lower Blade: Four (4) usable edges.
Support Table: Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.
Adjustable Hold-Down: Holds work piece securely in position when shearing.
Upper Shear Blade: Provides for minimum distortion. Two (2) usable edges.
Blade Length: 24”.
Angle Flange Trim: 5” in 5/8”.
Flat Bar Shear Work Height: 37”.
ANGLE SHEARING
Maximum Capacity – 90 degrees: 6” x 6” x 5/8”.
Maximum Capacity – 45 degrees: 3 x 3” x 3/8”.
Shearing with no material loss and minimum deformity.
Shear Blades: Four (4) usable edges.
Angle Shear Work Height: 48”.
BAR SHEARING
Round Bar Capacity: 2”.
Square Bar Capacity: 2” x 2”.
Six Cavity Round and Square Bar Shear Sizes: Round 3/4,1-1/2”,2
Square 1-1/4” to 2”
Channel Shear Max. (optional): 7”.
I-Beam Shear Max. (optional): 7”.
Bar Shear Work Height: 48”.
NOTCHING
Rectangular Notcher: 2-3/8” x 4” x 1/2”.
Electrical Interlock Safety Guard
Gauge Table with Stops: For precise positioning.
Notcher Work Height: 37”.
