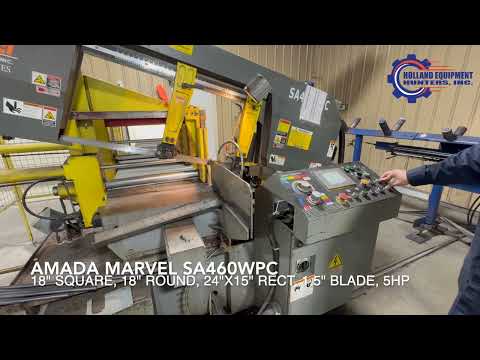

Cut rounds up to 15" and rectangles up to 24"x15". Powered by a 5 HP motor with hydraulic vise and control. Blade width: 1.5".
Cutting Capacity Round (Diameter) at 90° 18″ 460 mm
Round (Diameter) at 45° 15″ 380 mm
Rectangle (W x H) at 90° 24″ x 15″ 23″ Max x 18″ 610 x 380mm 580 Max x 460 mm
Square at 90° 18″ x 18″ 460 x 460 mm
Rectangle (W x H) at 45° 15″ x 15″ 380 x 380 mm
Work Load Capacity
Blade Saw Blade Size (L x T x W) 18’10” x 0.050″ x 1-1/2″ 5730 x 1.3 x 41 mm
Blade Speed 65-330 ft/min by Inverter 20-100 m/min by Inverter
Tension Control Hydraulic
Blade Control Top Limit Setting Manual Setting
Cutting Control Hydraulic Flow Control Valve
Vise Operation
Type Main and Rear Vise
Control Hydraulic Full-Stroke Cylinder
Motors
Saw Blade 5 HP 3.7 kW
Hydraulic Pump 1/2 HP 0.37 kW
Cutting Fluid Pump 1/8 HP 0.06 kW
Power Requirement Power Supply Voltage AC230V±10%, 3 PH, 60 Hz,
Required at Factory Voltage Setting
Power Requirement
Cutting Fluid Tank Capacity 14.5 gal 55 liters
Hydraulic
Tank Capacity 4.0 gal 15 liters
Pressure Setting
Chip Disposal Chip Conveyor
Material Index
Index Mechanism Shuttle Vise
Stroke 27.56″ 700 mm
Length 0.5″-393.7″ 13-9999.9 mm
Number of Input Block/Station 10
Number of Cut-Off Pieces 1-999
Remnant Length 11″ plus length of parts 280 mm plus length of parts
Machine Dimensions (W x L x H) Head-Up Position 110.5″ x 94.3″ x 110.2″ 2807 x 2395 x 2800 mm
Head Down Position 110.5″ x 94.3″ x 65.5″ 2807 x 2395 x 1665 mm
Table Height 36.4″ 925 mm
Machine Weight 4,740 lbs 2,150 kg
