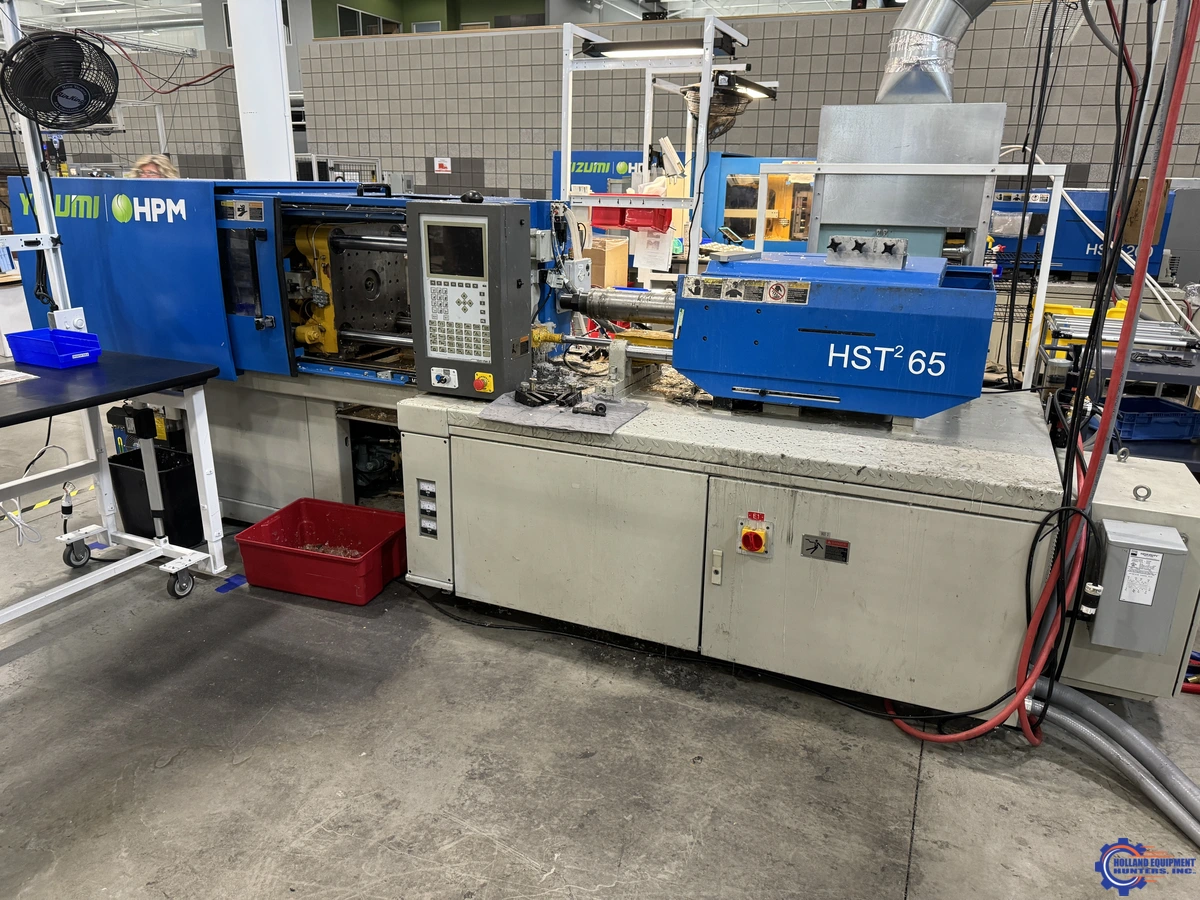

Converted over for use with silicone.
Closed loop, Fast toggle, Repeatable, ANSI/SPI B 151.1, 20:1 L/D, Twin Cylinder, TüV Rheinland Certified, Generous Platens.
Injection Size Range: 2.2-3.5oz
Clamp Stroke: 10.24"
Max Daylight: 22.05"
Min. Mold Thickness: 4.72"
Max Mold Thickness: 11.81"
Platen Size: 21.85" x 22.24"
Tie Rod Clearance: 14.17" x 14.17"
