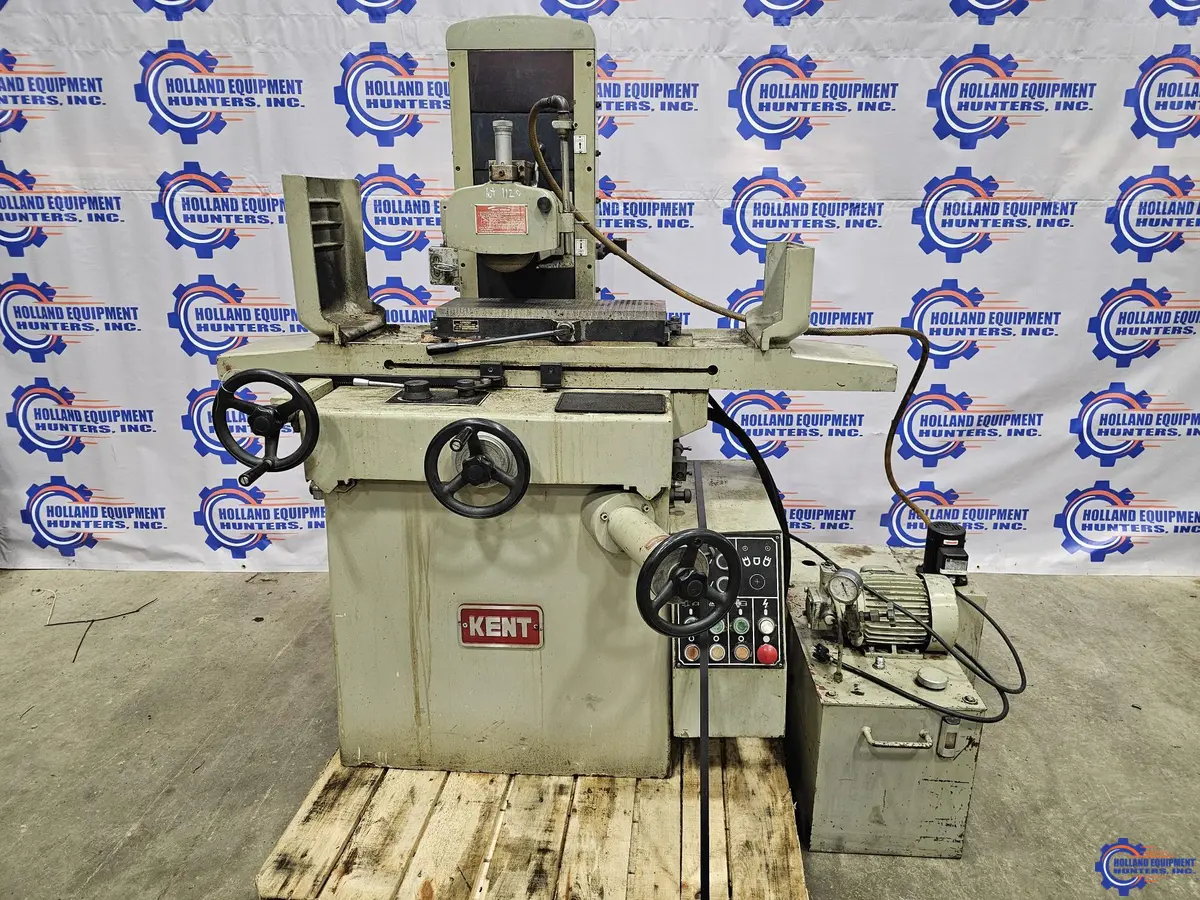

1983 Kent KGS-250AH 8" x 18" Hydraulic Surface Grinder
Have one to sell?
ConditionUsed
1 available
1983 Kent KGS-250AH 8" x 18" Hydraulic Surface Grinder. 8" x 18" table, 2 hp power, 7" grinding wheel dia., 3480 RPM spindle speed. Features: Permanent Magnetic Chuck, Overhead Wheel Dresser, Automatic Cross Feed, Coolant System.
8" x 16" Permanent Magnetic Chuck
Overhead Wheel Dresser
Automatic Cross Feed
Coolant System (Tank & Pump)
Table Working Surface, W x L 8" x 18"
Grinding Width Capacity, Maximum 8"
Grinding Length Capacity, Maximum 18"
Height Spindle Center to Table, Maximum 16"
Table Longitudinal, Power 20"
Table Cross Travel 10"
Grinding Wheel Diameter, Standard 7"
Grinding Wheel Width, Standard 0.5"
Grinding Wheel Hole Diameter 1.25"
Grinding Spindle Speed 3480 RPM
Table Longitudinal Feeds, Range 16 to 67 FPM
Table Cross In-Feeds, Range .04 to .3 IPR
Floor Space Required, L x D 6' x 4'7"
Weight, Approximately 2860 LBS
