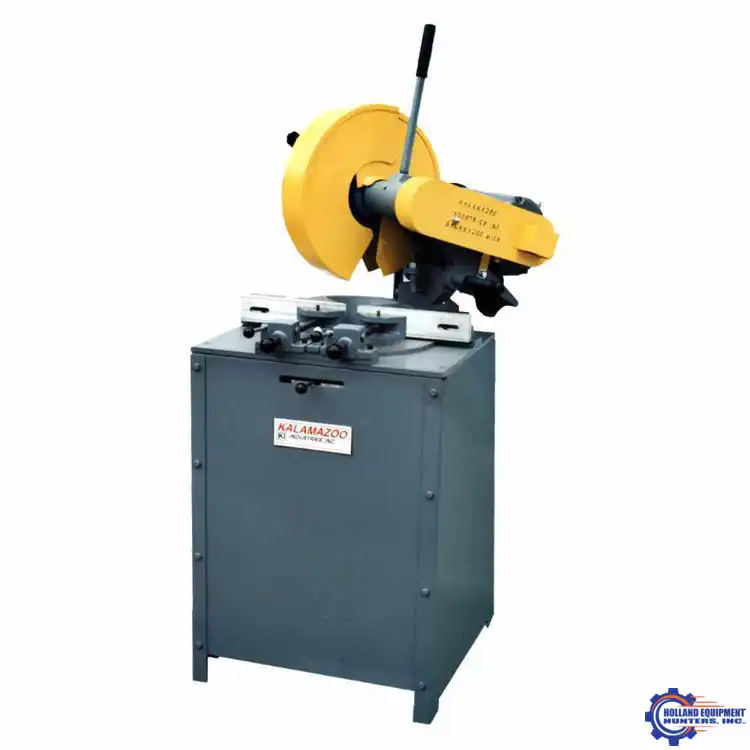

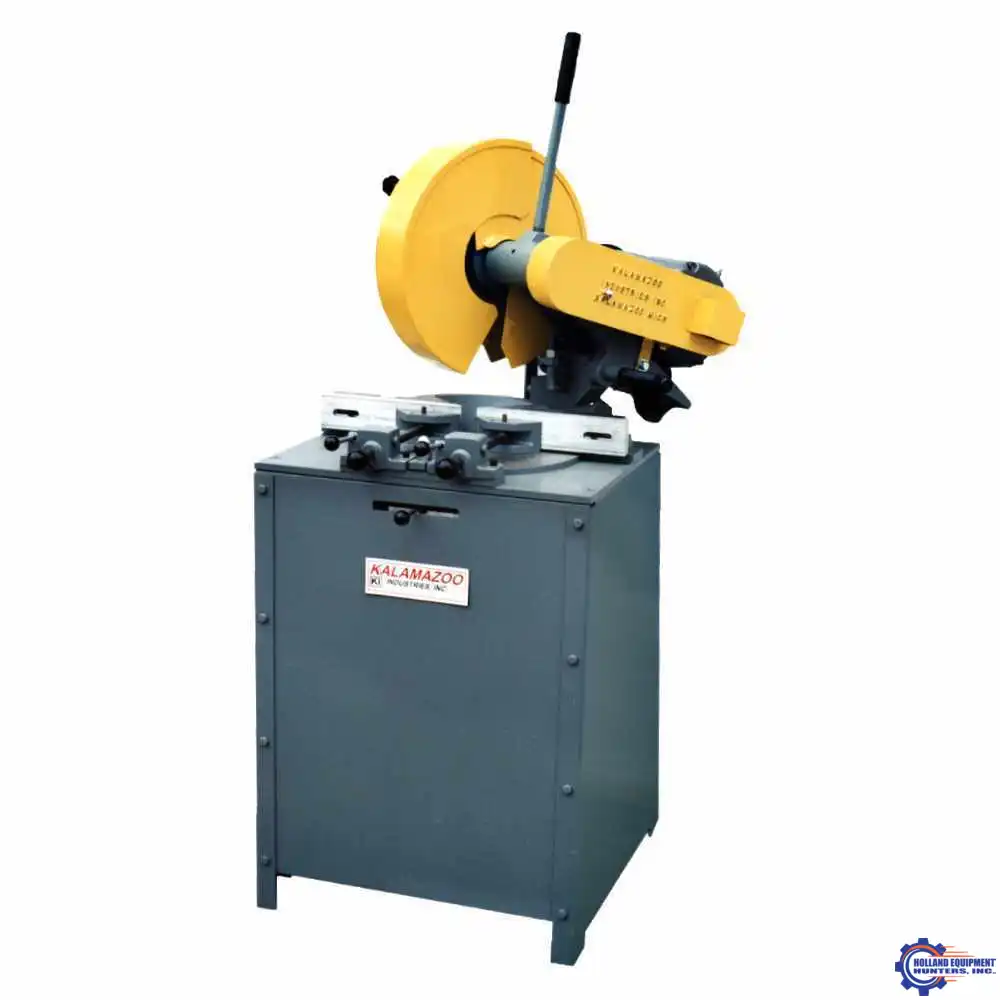

Kalamazoo Ind. 14" High Speed Non-Ferrous Mitre Saw KM14HS
Saws, Non-Ferrous| $4,375.00 USD |
KM14HS 14 inch high speed non-ferrous mitre saw will quickly cut non-ferrous material such as aluminum and pvc left and right up to 45 degrees, and clean with the correct high speed carbide toothed blade. Other saw features include heavy duty construction, a powerful 5HP motor, and double cam lock vises.
| Type | 0 |
| Enclosed | 0 |
| RPM | 4400 rpm |
| Dimensions | L 48_ x W 45_ x H 63 |
| Weight | 500 lbs |
14″ high speed non-ferrous mitre saw (HIGH SPEED NON-FERROUS CARBIDE BLADE NOT SUPPLIED).
Material capacities: 2.5″ solid at 90 degrees x 3″ pipe and 2.5″ at 45 degrees.
Motor specifications: 5HP 1PH 230V or 3PH 230V and or 480V
Switch type: magnetic on/off switch.
4400 rpm spindle speed.
Spindle arbor size: 1 inch
Sealed ball bearings.
Cast iron arm.
Cast iron trunnion.
Dual V-belt drive.
Dual cam vises open up to 6″.
Retractable steel clamshell safety guard.
V-belt guard.
Replaceable industrial dual cam lock vises.
Positive index holes with locking pin.
Front table lock.
Adjustable up/down stops.
Shipping weight: 500 lbs.
Shipping dimensions: L 48″ x W 45″ x H 63
