New

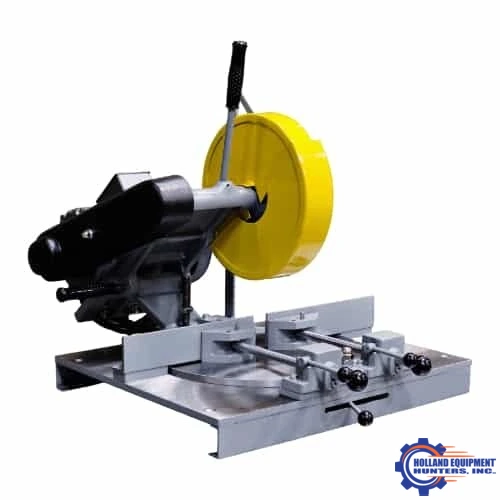

Kalamazoo Ind. 10" Heavy Duty Non-Ferrous Mitre Saw KM10HS
Saws, Non-Ferrous| $2,270.00 USD |
The Kalamazoo Industries KM10HS 10 inch non-ferrous saw is a powerful high speed saw that uses a carbide blade to cut aluminum and other non-ferrous materials efficiently and fast. The KM10HS features all-steel construction, a powerful 3HP motor, dual cam lock vises, and mitring head capabilities.
| Type | 0 |
| Enclosed | 0 |
| RPM | 3450 rpm |
| Dimensions | L 47" x W 37" x H 35" |
| Weight | 300 lbs |
3HP 1PH 115V or 230V and 3Ph 230V or 460V (specify voltage at time of order)
1PH FLA: 115V 24 amps and 230V 12 amps
3PH FLA: 208B 6.6 amps, 230V 6.4 amps and 460V 3.2 amps.
Blade size: 10″
3450 spindle speed
5/8″ spindle arbor
Blade type: high speed carbide tipped blade (not included).
Retractable safety clamshell blade guard.
Lever-lock for saw table.
Positive index holes – Comes with locking pin.
Mitres 45° degrees left and right. 60° right (only).
Capacities: 3.25″ at 90°, 3″ x 3 at 45°, 2″ at 60°
Heavy-duty sealed ball bearings.
Steel handle with plastic hand grip.
V-belt drive.
V-belt guard.
steel saw base .
Cast aluminum saw arm.
Cast aluminum saw trunnion
Two cam lock vises
