Kalamazoo Ind. 10" High Speed Non-Ferrous Saw
Have one to sell?
ConditionNew
$1,995.00 USD
New

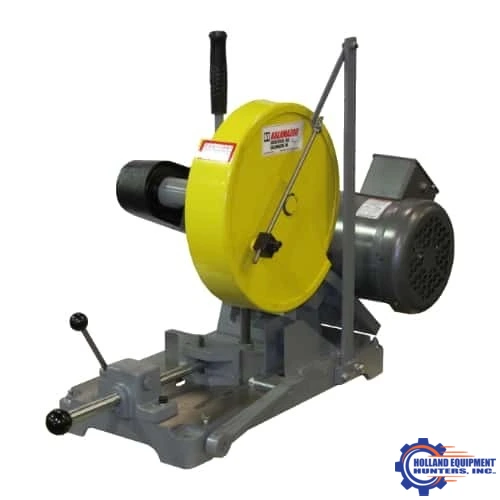

K10HS 10 inch industrial high speed non-ferrous saw engineered to cut non-ferrous materials such as aluminum fast and clean with the right saw blade. This saw will cut the following material: copper, brass, aluminum, pvc and much more. Made in USA!
Optional:
12-0 steel stand for K10B and K10HS saws.
SUGGESTED PARTS TO KEEP ON THE SHELF:
051-003 replacement v-belt
044-007 replacement sealed ball bearings
701-003 spindle with tight flange
912-015 vise assembly
292-008 loose flange
431-001 replacement front vise jaw
431-002 replacement rear vise jaw
3HP 3PH (220v or 440v) and or 3HP 1PH (110 or 220V) motor (SPECIFY PHASE AND VOLTAGE).
3450 RPM at the spindle.
Manual on/off switch.
Saw material capacity: 3.25″ solid/pipe.
Sealed ball bearings.
Cast aluminum arm.
Cast iron trunnion.
Threaded up/down stops to change blade cut depth.
Heavy duty cast iron base
5/8″ spindle arbor.
V-belt driven.
Spindle and motor pullies.
V-belt guard.
Blade type: high-speed carbide blade (not included).
Cam lock vise
Retractable clamshell guard
K10HS 10 inch industrial high speed non-ferrous saw engineered to cut non-ferrous materials such as aluminum fast and clean with the right saw blade. This saw will cut the following material: copper, brass, aluminum, pvc and much more. Made in USA!
Optional:
12-0 steel stand for K10B and K10HS saws.
SUGGESTED PARTS TO KEEP ON THE SHELF:
051-003 replacement v-belt
044-007 replacement sealed ball bearings
701-003 spindle with tight flange
912-015 vise assembly
292-008 loose flange
431-001 replacement front vise jaw
431-002 replacement rear vise jaw
Imperial
| Dimensions | L 30″ x W 36″ x H 30″. |
| Weight | 200 lbs. |
3HP 3PH (220v or 440v) and or 3HP 1PH (110 or 220V) motor (SPECIFY PHASE AND VOLTAGE).
3450 RPM at the spindle.
Manual on/off switch.
Saw material capacity: 3.25″ solid/pipe.
Sealed ball bearings.
Cast aluminum arm.
Cast iron trunnion.
Threaded up/down stops to change blade cut depth.
Heavy duty cast iron base
5/8″ spindle arbor.
V-belt driven.
Spindle and motor pullies.
V-belt guard.
Blade type: high-speed carbide blade (not included).
Cam lock vise
Retractable clamshell guard
