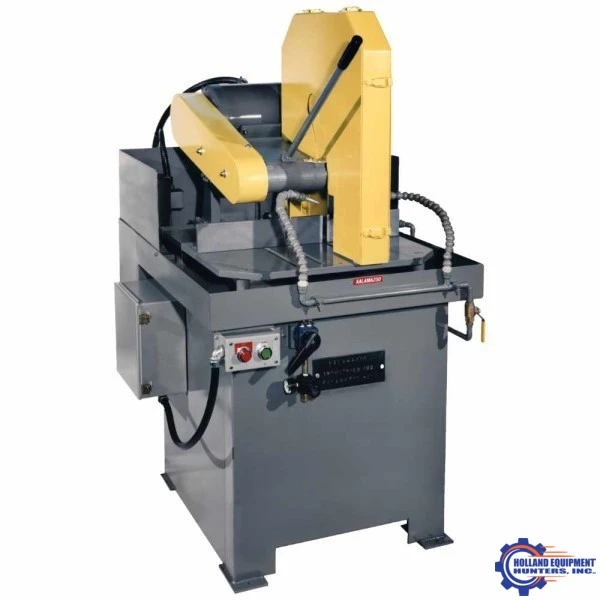

K20SW 20 inch wet heavy duty cut off saw is designed to cut metal metallographic samples fast and safely. Overall saw specifications: 15Hp 3PH motor or 20hp 3PH motor, all steel construction, 1“ spindle arbor, industrial coolant system that will help to minimize material burning.
Optional:
AV-20 air-operated jawed vise
TS-20 t-slotted table
OSC-26 oscillation
TM80128WS semi-synthetic coolant (RECOMMEND COOLANT)
701-018 spindle and tight flange
044-004 sealing spindle bearings
($14,350) 15 HP TEFC motor wired for 220V and or 440V
or
($15,350) 20 HP TEFC motor wired for 220V and or 440V
Magnetic controls
24V at the on/off push buttons.
Abrasive wheel size requirements: 20″
Material capacities: 4″ solid bar and 6″ shapes (mild steel)
Spindle arbor size: 1″
Spindle speed: 1,950 RPM
Cast iron arm
Cast iron trunnion
Steel base with a three-sided shroud
Steel coolant tank and industrial coolant pump,
Flexible coolant flair nozzles that you control with a ball valve
Air chain vise (shop air required).
V-belt driven
Saw operation type: manual operation
