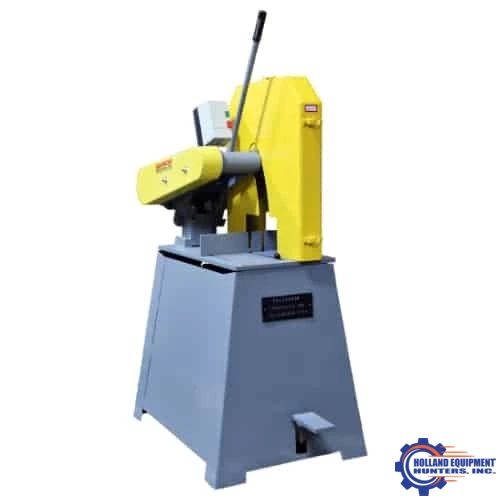

K20SSF 20 inch industrial abrasive chop saw is a rugged cut off saw designed to effectively cut 4″ solid or 6″ pipe with the correct cutoff wheel.
Optional:
WL-20 Work Stop
PH-20 Power down feed (shop air required)
DCV-1 Dust collector
6" Vacuum port attachment
KC5 5' Conveyor sections (KCL conveyor legs)
AV-20 Air vise (shop air required) , the work table is pre-drilled and countersunk for one vise.
KW2 20 INCH ABRASIVE CUTOFF SAW SPINDLE WRENCH
702-008 18 INCH TO 20 INCH CUT OFF SAWS SPINDLE ASSEMBLY (1.0" or 1.25")
KAB20R 20 INCH INDUSTRIAL ABRASIVE CHOP SAW WHEELS
044-004 INDUSTRIAL SEALED BALL BEARING SET
701-010 18 INCH AND 20 INCH CHOP SAW SPINDLE AND FLANGE (1.0" or 1.25")
15 HP and or 20HP 3PH 230V or 460V (specify voltage) TEFC saw duty motor.
15HP Motor: $4500
20HP Motor: $5275
Amp draw for 15HP: 208V 39.6 amps, 230V 36.4 amps and 460V 18.2 amps
Amp draw for 20HP: 208V 50 amps, 230V 46 amps, and 460V 23 amps.
Magnetic on/off push button switch.
Four V-belts.
20 inch abrasive cutoff wheel.
Adjustable down stop
1″ wheel arbor.
Rugged cast iron trunnion and arm.
Super rigid, super accurate.
Heavy-duty steel guards,
Steel spark chute.
Fast, foot-operated chain vise.
Sealed ball bearings.
Steel saw base with removable steel dust chute.
Table 18″ wide x 30″ deep.
Material capacity 4″ solid, 6″ shapes (material size is based on mild steel).
2500 spindle RPM.
