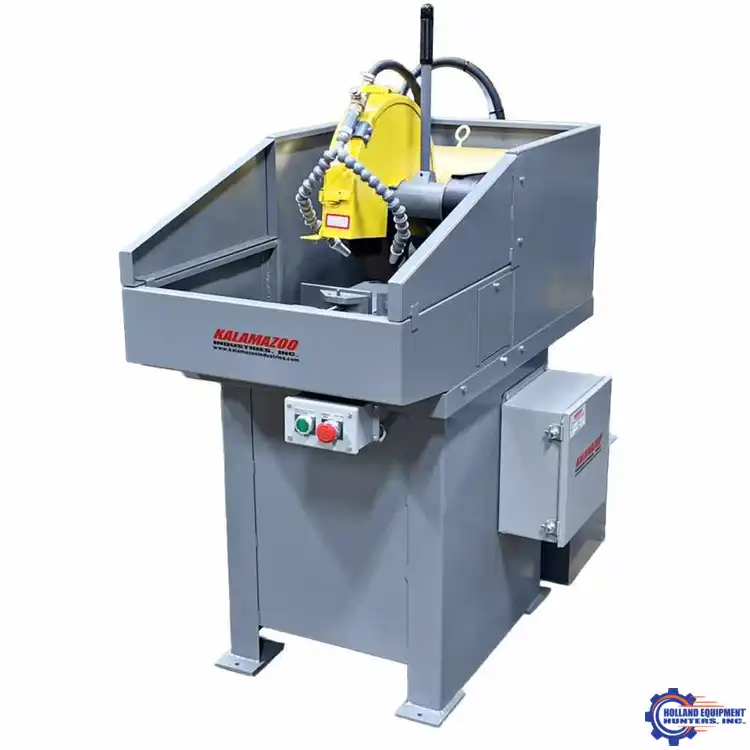

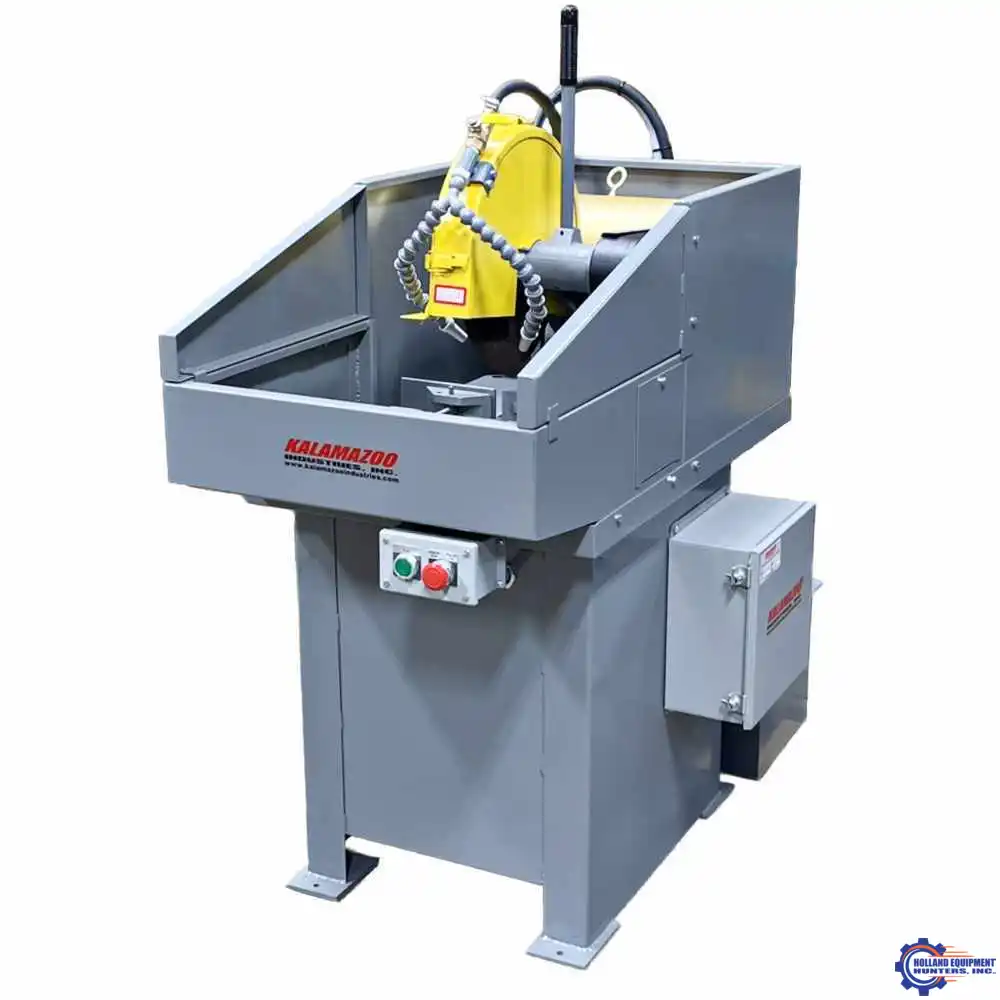

The K12-14 14 inch sectioning saw, with its flood coolant system, motor, and the correct wheel grade will help you to minimize burning on your metal. This robust wet sectioning saw comes with a powerful 5HP motor, all steel construction, magnetic controls with 24V on/off controls, and a flood coolant system with flexible nozzles.
Optional equipment:
PH-14 air/oil power down feed system.
AV-14 air operated air vise
051-006 14 INCH INDUSTRIAL CUTOFF SAW V-BELT SET
912-016 INDUSTRIAL METAL SAW CAM LOCK VISE ASSEMBLY
431-001 INDUSTRIAL ABRASIVE CUTOFF SAW VISE FRONT JAW
051-035 14 INCH CHOP SAW V-BELT TENSIONING TOOL
701-002 SAW SPINDLE AND FLANGE (1.0" or 1.25" avail.)
702-004 14 INCH ABRASIVE CUTOFF SAW SPINDLE ASSEMBLY (1.0" or 1.25" avail.)
Motor: 5HP 1PH 230V and or 3PH 230V and or 460V
3PH amp draws: 230V 13.9 amps and 440V 6.7 amps
3PH pump amp draws: 230V 1.1 amps and 440V .6 amps
Material capacities: 2.5″ solids, 3″ pipe (base on mild steel).
Abrasive wheel size: 12″ and or 14″ (use abrasive wheels only)
Magnetic switch controls.
24 volts at the on/off push button switch
2200 spindle speed.
1″ saw spindle arbor (optional: 32mm arbor).
Spindle arbor thread type: Left-handed
Two quick-release cam lock vises.
Flood coolant system (includes 10 tank with pump).
Heavy-duty cast iron arm
Cast iron trunnion.
Heavy-duty steel base.
Steel splash guard with left and right through ports.
