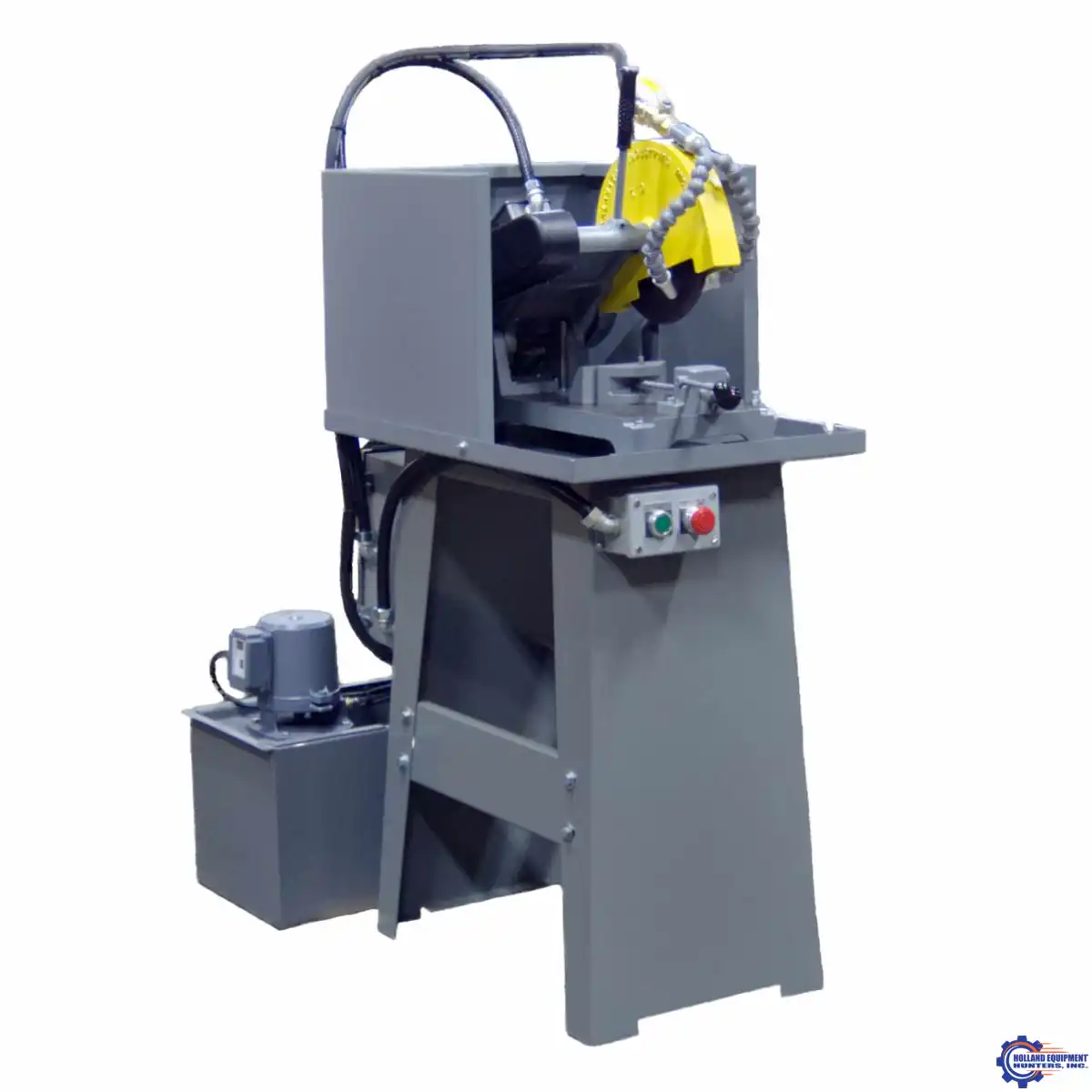

K10SW 10 inch wet abrasive chop saw will cut mild steel efficiently and minimize burning with the right cutoff wheel and the saws flood coolant system. The abrasive saw comes with a 3HP or 1PH motor, 3450 spindle RPM, 5/8th spindle arbor, heavy-duty construction, pump with floor coolant system, and swivel jaw vise.
Optional:
292-008 loose flange
044-004 spindle bearing set
701-003 spindle with tight flange
TM80128WS equipment coolant
Motor: 3 HP 1PH or 3PH 3450 RPM motor.
1PH amp draws: 115V 24 amps and 220V 12 amps.
1PH pump amp draw: 115V 1.5 amps 230V 3 amps
3PH amp draws: 220V 8.4 amps and 440V 4.2 amps.
3PH pump amp draws: 230V .9 amps and 440V 5.2 amps
Material cutting capacities: 1.5″ solids, 2.5″ pipe
Magnetic controls, 24V at the on/off switch.
Uses 10″ abrasive wheel (cutoff wheel not included)
5/8″ spindle arbor. Optional: 1 1/4″, 32mm
3450 spindle speed.
Cast iron saw base.
Cast iron trunnion.
Cast aluminum saw arm.
Steel stand.
Steel slash guard.
Adjustable work stop.
10-gallon steel coolant tank with pump.
