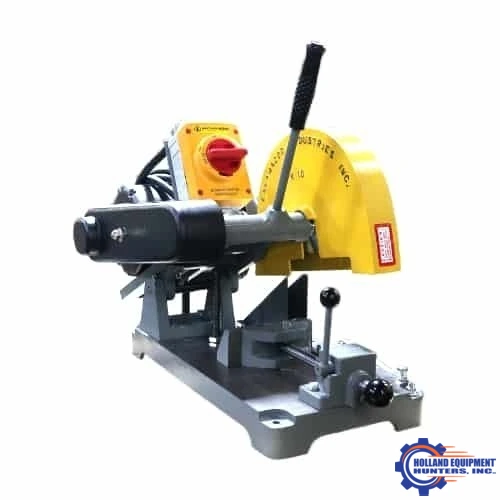

Kalamazoo Ind. 10" Heavy Duty Abrasive Chop Saw Floor Model K10S
Have one to sell?
$1,705.00 USD
ConditionNew
New
With a powerful 3HP motor and spindle rpm of 3450, the K10B inch industrial abrasive saw will quickly cut mild steel that’s 1.5 solid and 2.5 inch pipe. The cutoff saw features 3PH 1PH and/or 3PH motor, cam lock vise, adjustable work stop, heavy-duty construction, and 5/8th spindle arbor.
Optional:
KAB10R 10 INCH ABRASIVE REINFORCED CUTOFF WHEEL PACKAGE
912-015 INDUSTRIAL ABRASIVE CHOP SAW METAL CAM LOCK VISE
1CC 5C INDUSTRIAL COLLET CHUCK FIXTURE
292-008 loose flange
044-004 spindle bearing set
701-003 spindle with tight flange
3HP 1PH 115V or 230V and or 3PH 230V 460V (specify phase and voltage at the time of order).
1PH amp draws: 115V 24 amps and 220V 12 amps.
3PH amp draws: 220V 8.4 amps and 440V 4.2 amps.
Spindle RPM: 3450
Material capacity: 1 .5″ solids, 2 1/2″ pipe.
Abrasive cutoff wheel size: 10″.
Steel pull-down handle with plastic grip.
5/8″ spindle arbor.
Adjustable up and down stops.
Sealed ball bearings.
Cast iron base.
Cast iron trunnion.
Cast aluminum arm.
Replaceable and repairable cam lock vise.
Adjustable work length stop.
