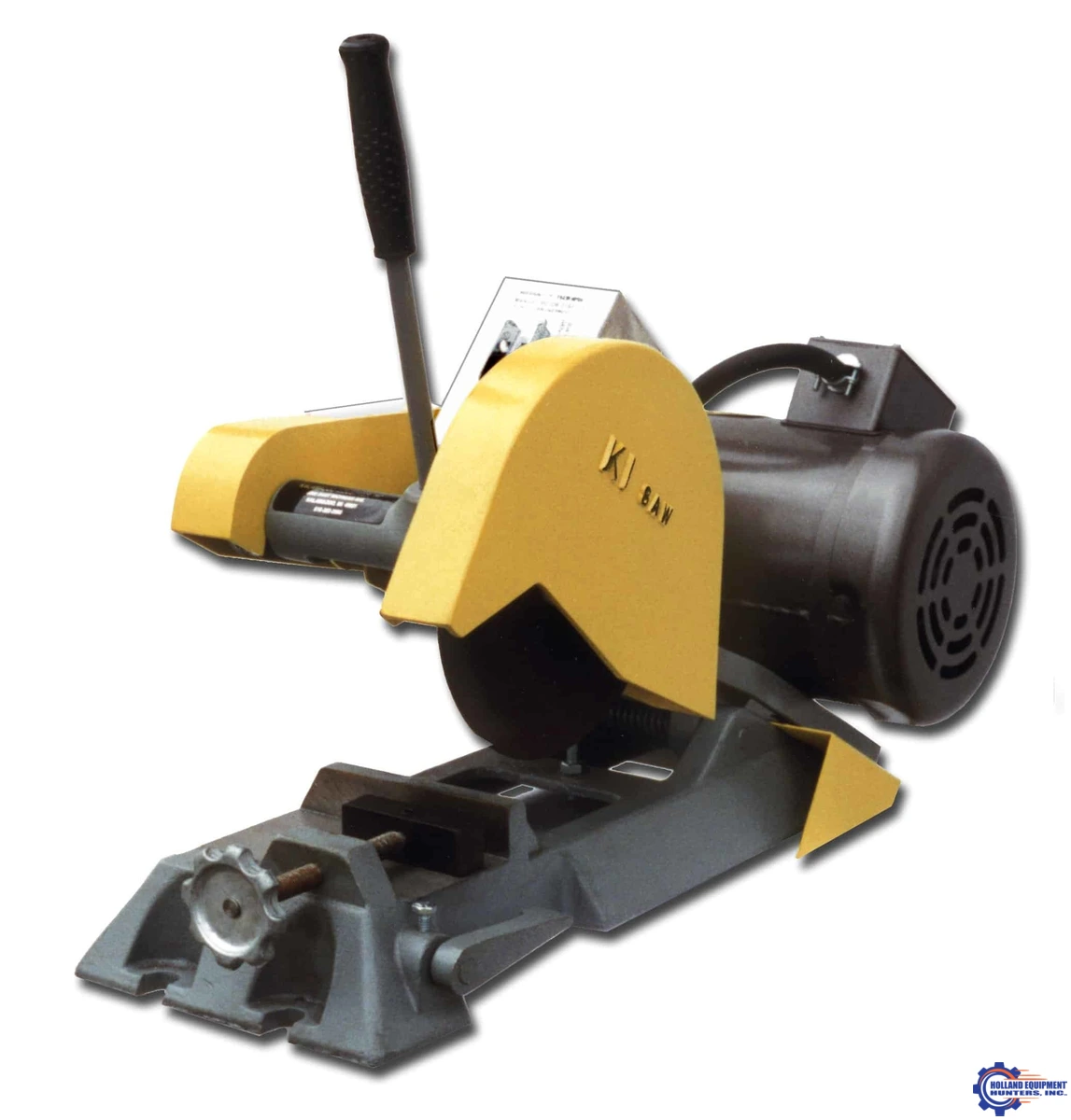

K8B 8 inch abrasive dry metal cutting saw will cut mild steel up to 1.5″ solid and up to 2″ pipe. And with the right abrasive blade will shorten the cut time. The K8B 8 inch abrasive dry metal cutting saw with the correct abrasive wheel will cut mild steel such as bar stock, angle iron, round stock, and flat stock efficiently and help to speed up your production.
Optional:
12-P INDUSTRIAL STEEL MULTI PURPOSE STAND
KAB8N 8 inch abrasive cutoff wheel (1 box)
3 HP TEFC motor 1 PH (110/220V) and or 3 PH (220/440V). NOTE: specify voltage and phase at the time of order.
Single phase amp draws 115V 24 amps and 230V 12 amps.
Three phase amp draws: 220V 8.4 amps and 440V 4.2 amps
Cutoff wheel capacity: 8″ diameter cutoff wheel (less abrasive wheel).
Spindle RPM: 4800.
Spindle arbor: 1/2″
Material capacities: cuts 1-1/2″ solid, 2″ pipe (mild steel).
Screw vise with jaw.
V-belt.
Belt guard.
Rear spark deflector.
Cast iron base
Cast iron trunnion.
Cast aluminum saw arm.
