Pacific 400D8-54 400 Ton Hydraulic Press
Have one to sell?
ConditionUsed
1 available

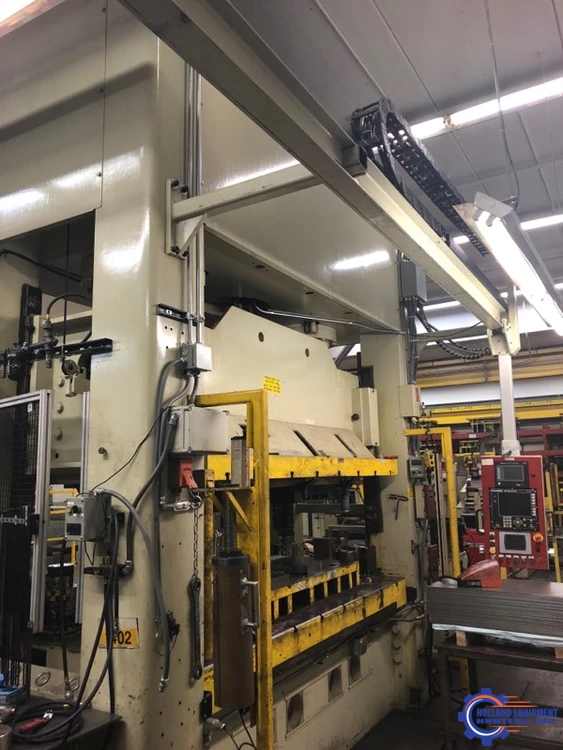

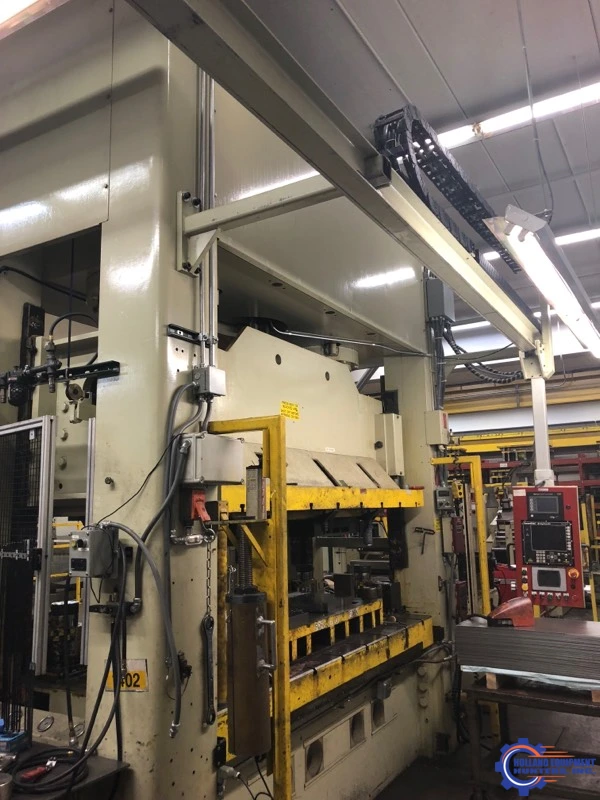

(1) Used Pacific 400D8-54 Hydraulic Straight Side Press
FOB Hamilton, MI
SUB-PLATES REQUIRED (.900" TO 1.0" THICK) UPPER & LOWER
THREE PLATE CUSHION, 12" STROKE, 165 TONS TOTAL
CUSHION PIN MATERIAL 4150
BOLSTER THICKNESS 7.555
1 3/8 DIA. K.O. RODS WITH 2 1/2 STROKE (4 3/4 THICK RAM PLATE)
STANDARD FEED HEIGHT 8.0" + - 3
WINTRISS DIE PROTECTION ON PRESS
MISS FEED SENSOR REQUIRED ON ALL PROGRESSIVE DIES
JUNCTION BOX MOUNTED ON L.R. CORNER OF DIE FOR CONNECTION TO WINTRISS
Capacity: 400 Ton
Stroke: 30"
Rated Piercing Capacity: 260 tons Max
Bed Size: 54" x 99"
Ram Size: 54" x 96"
Distance Between Frame: 99.5"
Shut Height: 36" Open
Shut Height Min: 6" (12" Preferred)
