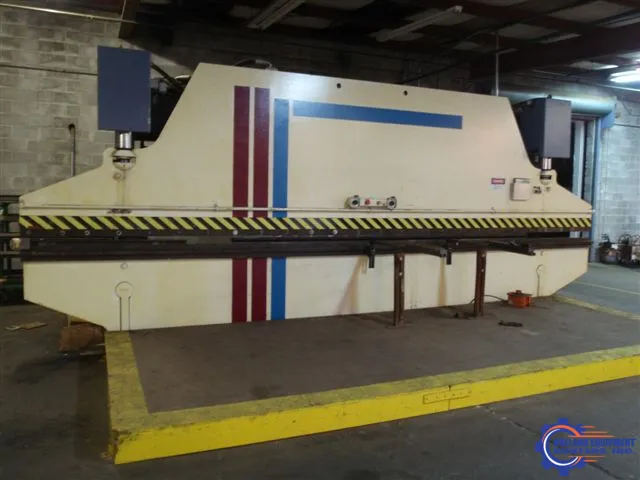

Pacific 230 Ton (forming) 150 Ton (punching), 25' overall length, 18.5' between housing. 10" stroke. Equipped with 45HP motor, 25' Lower die holder, Dual palm on ram, and remote operator foot switch.
25' Lower Die Holder
Dual Palm Buttons Mounted on Ram & Remote Operator Foot Switch
Optional Foot Switch or Dual Palm Button Controls
Dual Palm Button Mounted on Ram of machine
Lower Die Holder
Machine * Operators Control manuals
Capacity Forming: 230 Tons
Capacity Punching: 150 Tons
Length of Bed & Ram: 25'
Distance Between Housings: 18' 6"
Stroke: 10"
Open Height: 15"
Closed Height: 5"
Apron Below Grade: 26"
Motor: 45-HP 230/460/3
Over All Dimensions: 25' LR x 80" FB x 140" High
Weight: 56,000 Lbs
